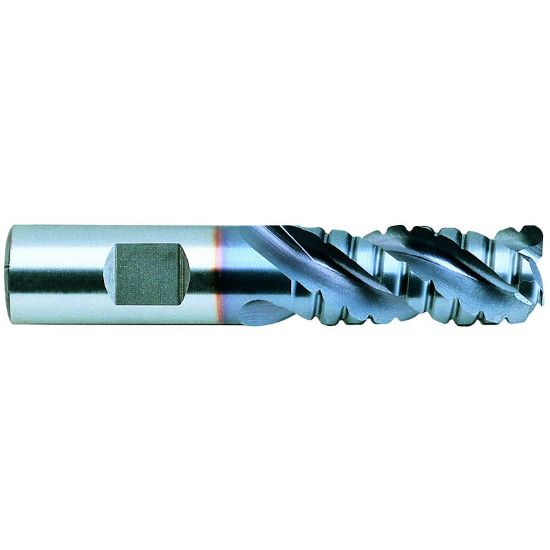

YG-1 66911 DIA 1-1/4 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Powder Metal Uncoated Single End Corner Radius 0.1200 3.05MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66911
Delivery date: 3-5 days
$156.08

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling, Slot Milling
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Tool Material Powder Metal
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutter Style Powder Metal Bull Nose Rougher
Inch/Metric Inch
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Helix Angle 42°
Single/Double End Single End
Corner Radius 0.1200 3.05MM
Machine Side Connection Size 1.2500 31.75MM
Length Type Standard
End Of Tool Shape Corner Radius
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
