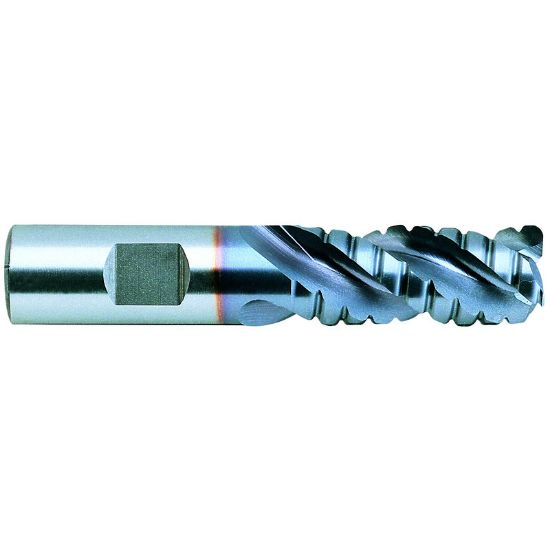

YG-1 66906 DIA 1 SH 1.00 LOC 2.00 OAL 4.50 End Mill Powder Metal Uncoated Single End Corner Radius 0.0600 1.52MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66906
Delivery date: 3-5 days
$121.75

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Length Type Standard
End Of Tool Shape Corner Radius
Tool Material Powder Metal
Flutes/Inserts 3
Single/Double End Single End
Helix Angle 42°
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 4.5000 114.30MM
Cutter Style Powder Metal Bull Nose Rougher
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Corner Radius 0.0600 1.52MM
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
