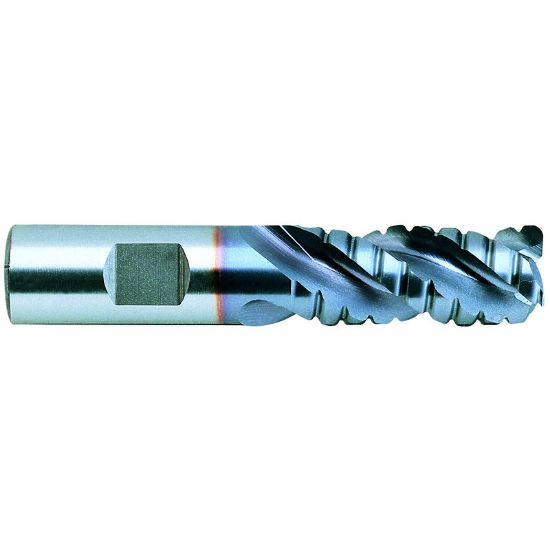

YG-1 66905 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Powder Metal Uncoated Single End Corner Radius 0.1200 3.05MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66905
Delivery date: 3-5 days
$78.63

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 42°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Corner Radius
Single/Double End Single End
Flutes/Inserts 3
Length Of Cut 1.6250 41.28MM
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Powder Metal
Machine Side Connection Size 0.7500 19.05MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Style Powder Metal Bull Nose Rougher
Inch/Metric Inch
Corner Radius 0.1200 3.05MM
Overall Len 3.8750 98.43MM
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
Mold Yes
Automotive Yes
