  • YG-1 66902CN DIA 1-1/4 SH 1.2500 LOC 3.00 OAL 5.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

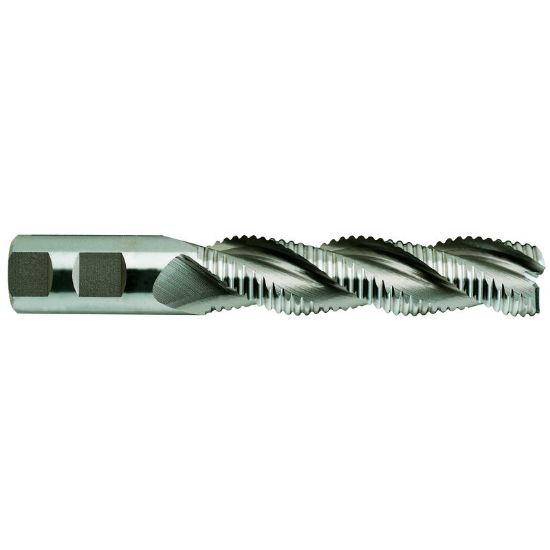

Picture of YG-1 66902CN DIA 1-1/4 SH 1.2500 LOC 3.00 OAL 5.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 66902CN DIA 1-1/4 SH 1.2500 LOC 3.00 OAL 5.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66902CN
Delivery date: 3-5 days
$177.24

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Side Milling, Face Milling
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Length Of Cut 3.0000 76.20MM
Cutter Style Cobalt Rougher
Overall Len 5.5000 139.70MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
End Of Tool Shape Square
Machine Side Connection Size 1.2500 31.75MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 1.2500 31.75MM - 1-1/4
Inch/Metric Inch
Helix Angle 37°
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
