  • YG-1 66461CN DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

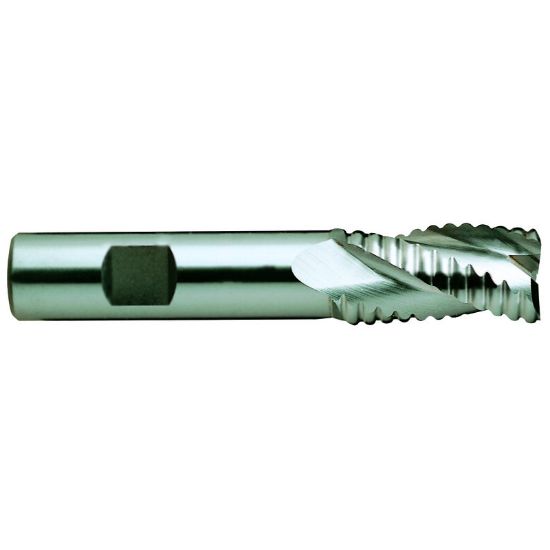

Picture of YG-1 66461CN DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 66461CN DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66461CN
Delivery date: 3-5 days
$207.47

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Type Weldon
Machine Side Connection Size 1.2500 31.75MM
Length Type Standard
Cutter Style Cobalt Rougher
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 1.5000 38.10MM - 1-1/2
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
End Of Tool Shape Square
Helix Angle 37°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
