  • YG-1 66461 DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

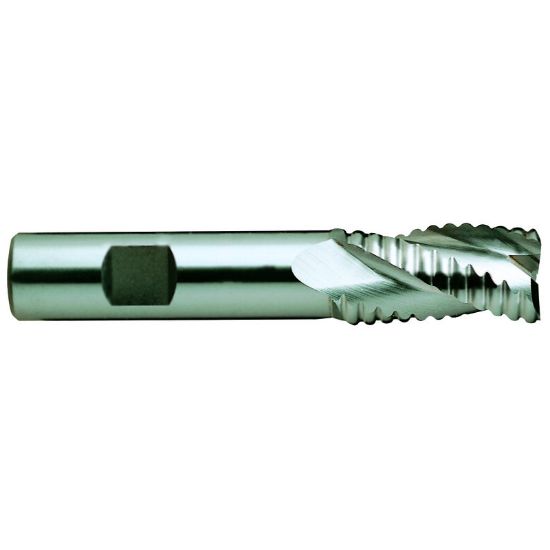

Picture of YG-1 66461 DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 66461 DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66461
Delivery date: 3-5 days
$163.01

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Helix Angle 37°
Machine Side Connection Size 1.2500 31.75MM
Tool Material Cobalt
Cutter Style Cobalt Rougher
Single/Double End Single End
Length Type Standard
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Energy Yes
Agricultural YES
