  • YG-1 66445CN DIA 1-1/4 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

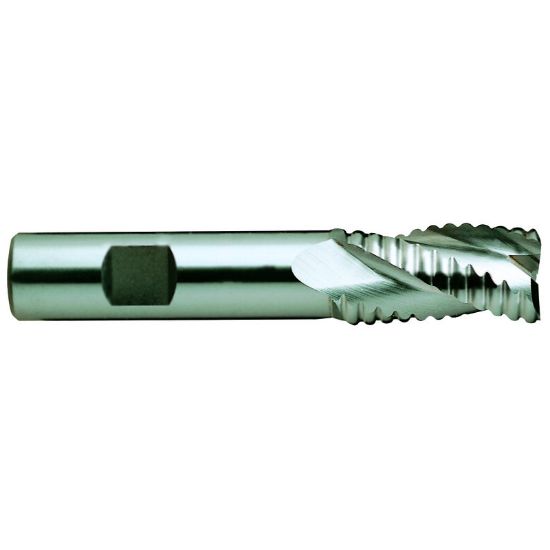

Picture of YG-1 66445CN DIA 1-1/4 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 66445CN DIA 1-1/4 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66445CN
Delivery date: 3-5 days
$153.15

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Coating TiN
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Style Cobalt Rougher
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 1.2500 31.75MM - 1-1/4
Inch/Metric Inch
Helix Angle 37°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
End Of Tool Shape Square
Machine Side Connection Size 1.2500 31.75MM
Length Type Standard
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
