  • YG-1 66426CN DIA 1 SH 1.00 LOC 2.00 OAL 4.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

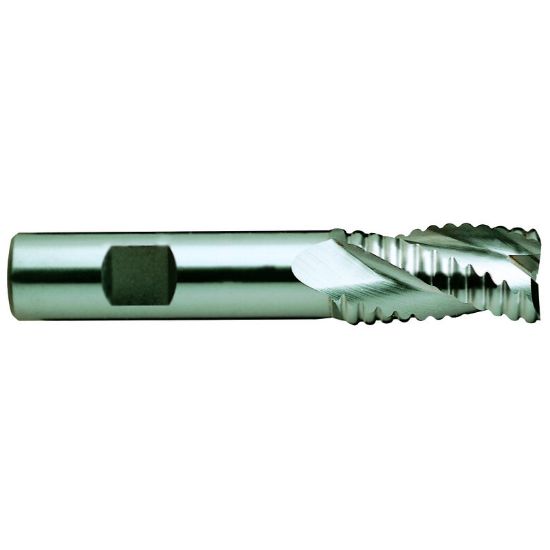

Picture of YG-1 66426CN DIA 1 SH 1.00 LOC 2.00 OAL 4.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 66426CN DIA 1 SH 1.00 LOC 2.00 OAL 4.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66426CN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Tool Material Cobalt
Cutter Style Cobalt Rougher
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
End Of Tool Shape Square
Helix Angle 37°
Cutter Dia 1.0000 25.40MM
Length Type Standard
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Energy Yes
Agricultural YES
Job Shop Yes
