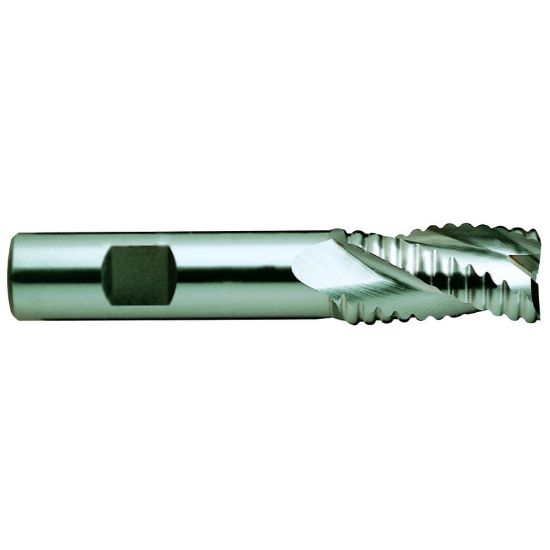

Picture of YG-1 66391CN DIA 7/8 SH 0.7500 LOC 1.8750 OAL 4.1250 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 66391CN DIA 7/8 SH 0.7500 LOC 1.8750 OAL 4.1250 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66391CN
Delivery date: 3-5 days
$87.28

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Helix Angle 37°
Length Of Cut 1.8750 47.63MM
Length Type Standard
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutter Dia 0.8750 22.23MM - 7/8
Overall Len 4.1250 104.78MM
Cutter Style Cobalt Rougher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Energy Yes
