  • YG-1 66321CN DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

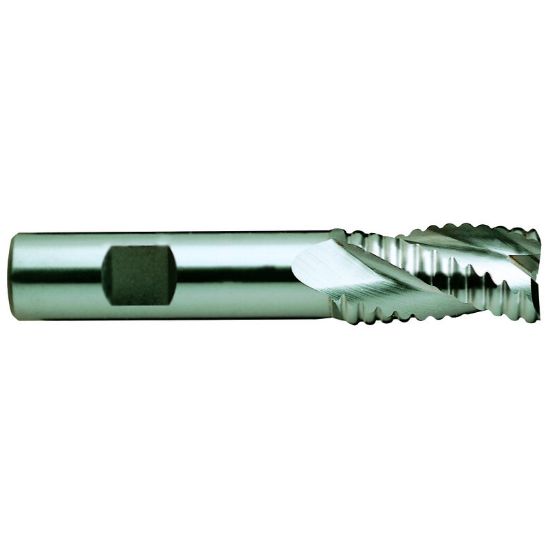

Picture of YG-1 66321CN DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 66321CN DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66321CN
Delivery date: 3-5 days
$46.03

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling
Coating TiN
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Inch/Metric Inch
Helix Angle 37°
Cutter Style Cobalt Rougher
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Length Of Cut 1.2500 31.75MM
Single/Double End Single End
Machine Side Connection Type Weldon
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
