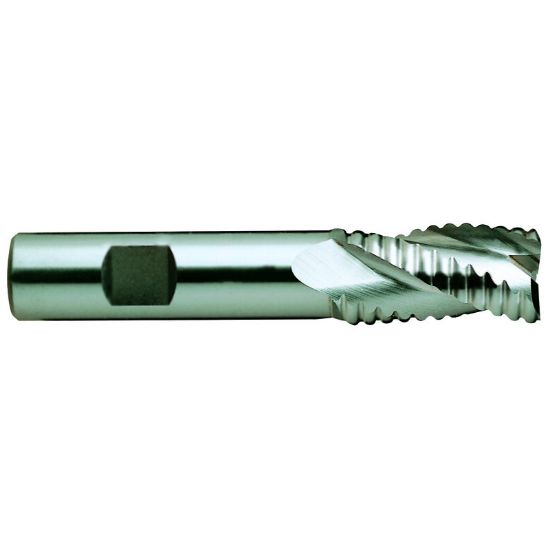

YG-1 66321CF DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Cobalt TiAlN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66321CF
Delivery date: 3-5 days
$50.03

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Coating TiAlN
Dimensional Specifications
Length Of Cut 1.2500 31.75MM
Cutter Style Cobalt Rougher
Cut Rating Aluminum, Graphite, Plastic
Inch/Metric Inch
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Single/Double End Single End
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Flutes/Inserts 3
End Of Tool Shape Square
Helix Angle 37°
Machine Side Connection Type Weldon
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
