  • YG-1 66301CN DIA 5/16 SH 0.3750 LOC 0.7500 OAL 2.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

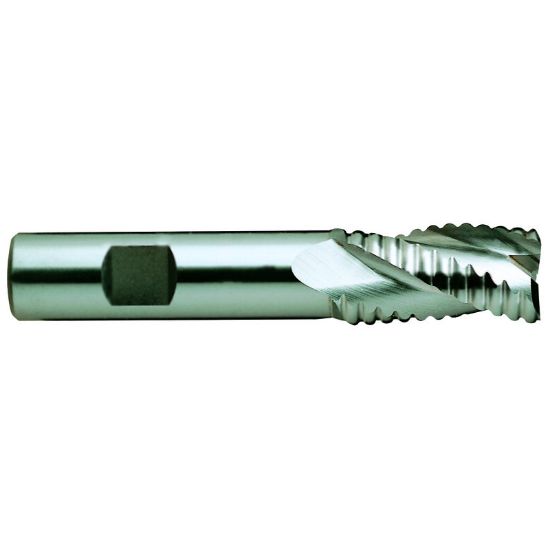

Picture of YG-1 66301CN DIA 5/16 SH 0.3750 LOC 0.7500 OAL 2.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 66301CN DIA 5/16 SH 0.3750 LOC 0.7500 OAL 2.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66301CN
Delivery date: 3-5 days
$32.51

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Side Milling, Face Milling
Package Size 1
Shipping State Illinois
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Weldon
Inch/Metric Inch
Length Type Standard
Tool Material Cobalt
Overall Len 2.5000 63.50MM
Length Of Cut 0.7500 19.05MM
Single/Double End Single End
Machine Side Connection Size 0.3750 9.53MM
Cutter Style Cobalt Rougher
Cutter Dia 0.3125 7.94MM - 5/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
End Of Tool Shape Square
Helix Angle 37°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
