  • YG-1 66301 DIA 5/16 SH 0.3750 LOC 0.7500 OAL 2.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

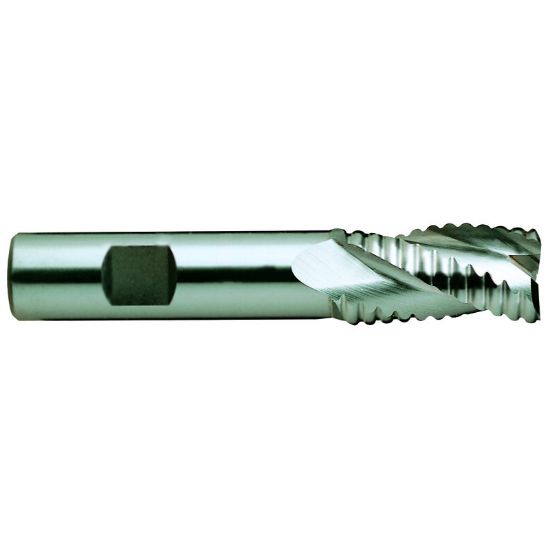

Picture of YG-1 66301 DIA 5/16 SH 0.3750 LOC 0.7500 OAL 2.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 66301 DIA 5/16 SH 0.3750 LOC 0.7500 OAL 2.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66301
Delivery date: 3-5 days
$26.07

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Tool Material Cobalt
Overall Len 2.5000 63.50MM
Cutter Style Cobalt Rougher
Single/Double End Single End
Machine Side Connection Type Weldon
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Helix Angle 37°
Cutter Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 3
End Of Tool Shape Square
Length Of Cut 0.7500 19.05MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
