  • YG-1 66297CN DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375 End Mill Cobalt TiN Single End Square Sharp General Purpose

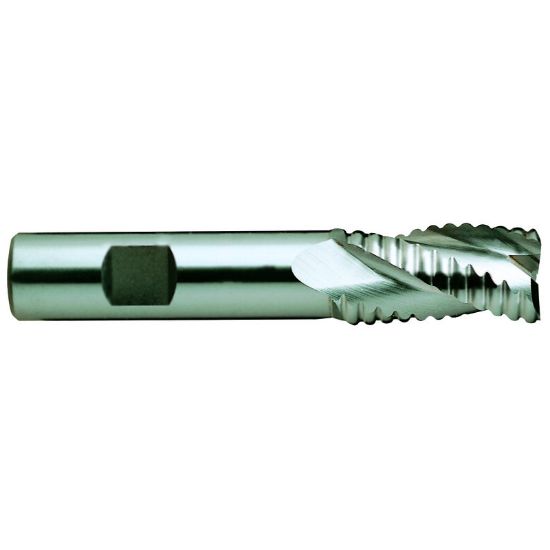

Picture of YG-1 66297CN DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 66297CN DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66297CN
Delivery date: 3-5 days
$32.51

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Performance Rating General Performance
Coating TiN
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Flutes/Inserts 3
End Of Tool Shape Square
Tool Material Cobalt
Single/Double End Single End
Cutter Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.4375 61.91MM
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Helix Angle 37°
Cutter Style Cobalt Rougher
Machine Side Connection Type Weldon
Length Of Cut 0.6250 15.88MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
