  • YG-1 66297 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

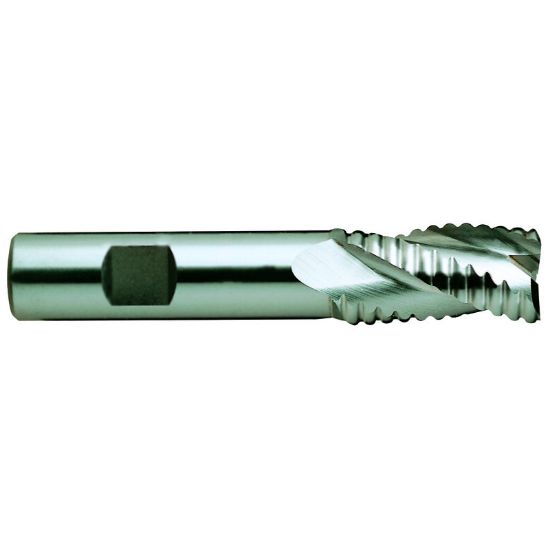

Picture of YG-1 66297 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 66297 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-66297
Delivery date: 3-5 days
$26.07

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Helix Angle 37°
Tool Material Cobalt
Length Of Cut 0.6250 15.88MM
Single/Double End Single End
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutter Style Cobalt Rougher
Overall Len 2.4375 61.91MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
