  • YG-1 65445CN DIA 1-1/4 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

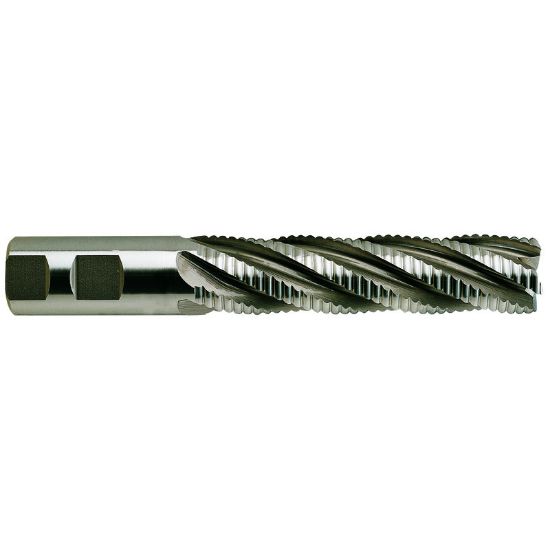

Picture of YG-1 65445CN DIA 1-1/4 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 65445CN DIA 1-1/4 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-65445CN
Delivery date: 3-5 days
$164.61

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Coating TiN
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
End Of Tool Shape Square
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 4.0000 101.60MM
Helix Angle 30°
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Inch/Metric Inch
Cutter Style Cobalt Rougher
Length Type Long
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
