  • YG-1 65359 DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

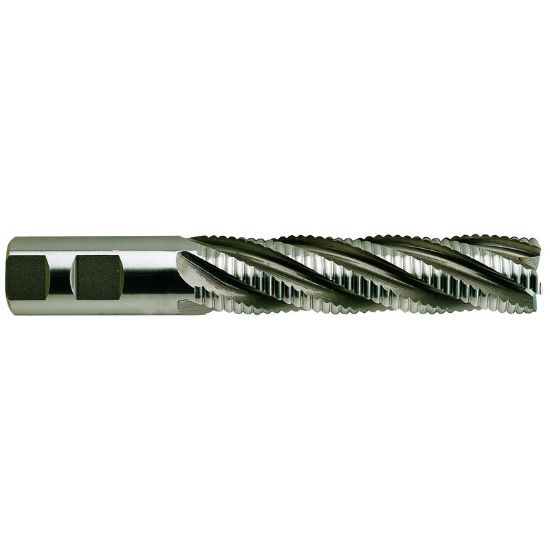

Picture of YG-1 65359 DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 65359 DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-65359
Delivery date: 3-5 days
$54.09

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 4
Length Of Cut 3.0000 76.20MM
Length Type Long
Machine Side Connection Type Weldon
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Helix Angle 30°
End Of Tool Shape Square
Overall Len 5.2500 133.35MM
Cutter Style Cobalt Rougher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
