  • YG-1 65337CN DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Cobalt TiN Single End Square Sharp General Purpose

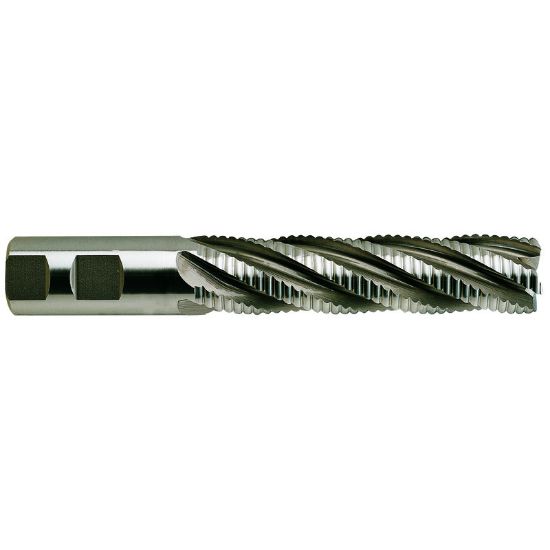

Picture of YG-1 65337CN DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 65337CN DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-65337CN
Delivery date: 3-5 days
$64.55

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Performance Rating General Performance
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Inch/Metric Inch
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Cutter Style Cobalt Rougher
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Overall Len 4.6250 117.48MM
Single/Double End Single End
Flutes/Inserts 4
Length Type Long
Cutter Dia 0.6250 15.88MM - 5/8
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Energy Yes
Job Shop Yes
Agricultural YES
