  • YG-1 65337 DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

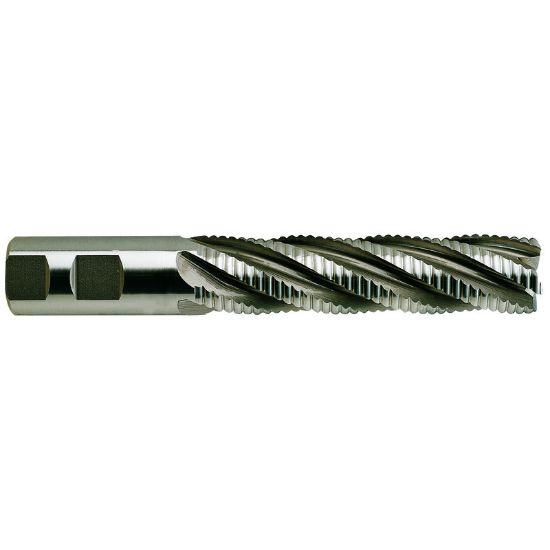

Picture of YG-1 65337 DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 65337 DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-65337
Delivery date: 3-5 days
$50.20

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Helix Angle 30°
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Overall Len 4.6250 117.48MM
Single/Double End Single End
Machine Side Connection Type Weldon
Inch/Metric Inch
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Length Type Long
Cutter Style Cobalt Rougher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
