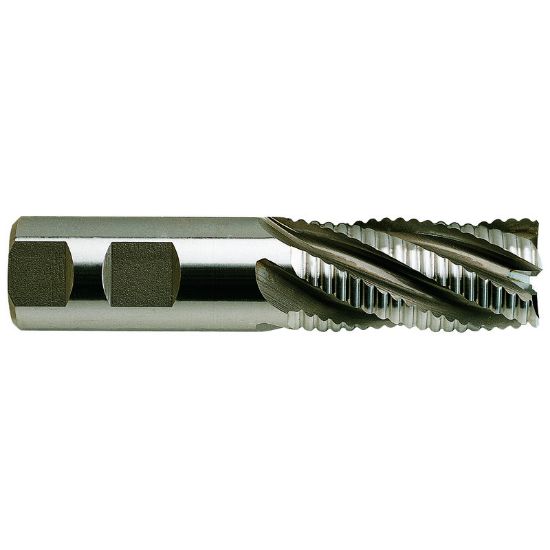

YG-1 64321CN DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-64321CN
Delivery date: 3-5 days
$38.36

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 30°
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Single/Double End Single End
Inch/Metric Inch
Flutes/Inserts 4
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Length Of Cut 1.2500 31.75MM
Cutter Style Cobalt Rougher
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
