  • YG-1 63359 DIA 3/4 SH 0.7500 LOC 0.7500 OAL 2.8750 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

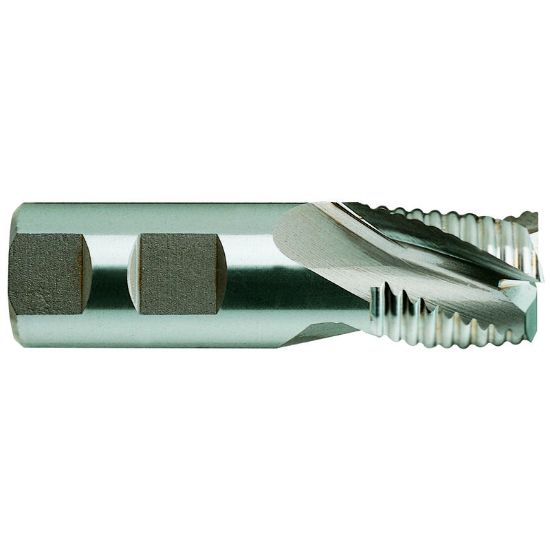

Picture of YG-1 63359 DIA 3/4 SH 0.7500 LOC 0.7500 OAL 2.8750 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 63359 DIA 3/4 SH 0.7500 LOC 0.7500 OAL 2.8750 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-63359
Delivery date: 3-5 days
$47.17

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 2.8750 73.03MM
Inch/Metric Inch
Cutter Style Cobalt Rougher
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 0.7500 19.05MM
Single/Double End Single End
End Of Tool Shape Square
Length Type Stub
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Energy Yes
Agricultural YES
Job Shop Yes
