  • YG-1 63337CN DIA 5/8 SH 0.6250 LOC 0.6250 OAL 2.7500 End Mill Cobalt TiN Single End Square Sharp General Purpose

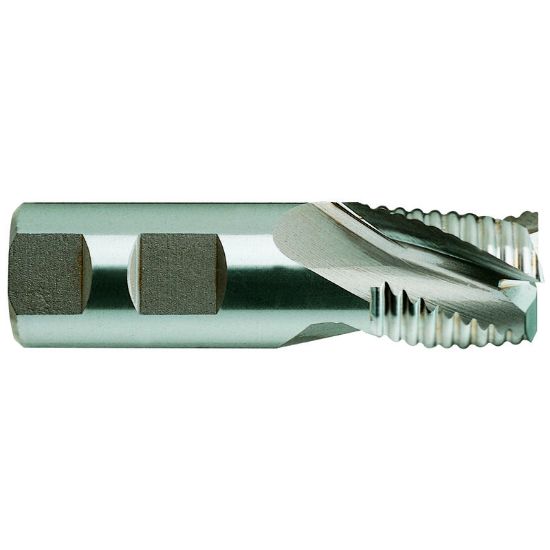

Picture of YG-1 63337CN DIA 5/8 SH 0.6250 LOC 0.6250 OAL 2.7500 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 63337CN DIA 5/8 SH 0.6250 LOC 0.6250 OAL 2.7500 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-63337CN
Delivery date: 3-5 days
$47.04

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Coating TiN
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Cutter Style Cobalt Rougher
Single/Double End Single End
Machine Side Connection Type Weldon
Helix Angle 30°
End Of Tool Shape Square
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 2.7500 69.85MM
Flutes/Inserts 3
Cutter Dia 0.6250 15.88MM - 5/8
Length Type Stub
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
