  • YG-1 63337 DIA 5/8 SH 0.6250 LOC 0.6250 OAL 2.7500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

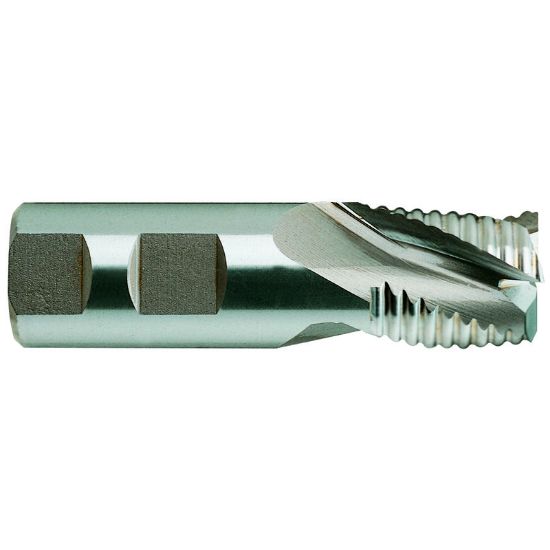

Picture of YG-1 63337 DIA 5/8 SH 0.6250 LOC 0.6250 OAL 2.7500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 63337 DIA 5/8 SH 0.6250 LOC 0.6250 OAL 2.7500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-63337
Delivery date: 3-5 days
$37.97

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Length Type Stub
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
End Of Tool Shape Square
Length Of Cut 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 2.7500 69.85MM
Flutes/Inserts 3
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutter Style Cobalt Rougher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
