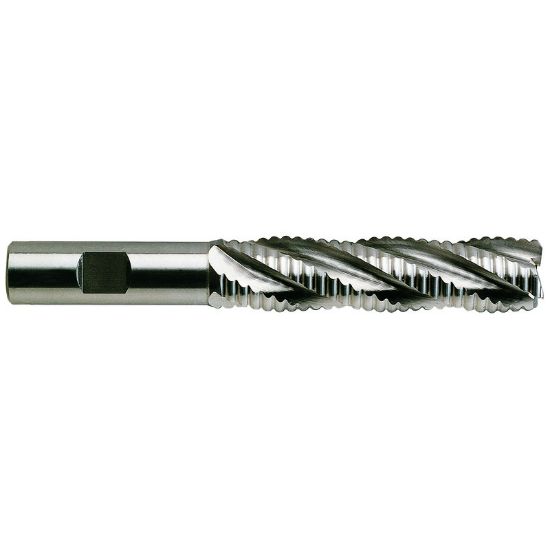

Picture of YG-1 62469 DIA 1-3/4 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 62469 DIA 1-3/4 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-62469
Delivery date: 3-5 days
$182.09

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Long
Cutter Dia 1.7500 44.45MM - 1-3/4
Length Of Cut 4.0000 101.60MM
Helix Angle 30°
Machine Side Connection Size 1.2500 31.75MM
Tool Material Cobalt
Cutter Style Cobalt Rougher
Single/Double End Single End
Machine Side Connection Type Weldon
Flutes/Inserts 6
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
End Of Tool Shape Square
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
