  • YG-1 62457 DIA 1-1/2 SH 0.7500 LOC 4.00 OAL 6.2500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

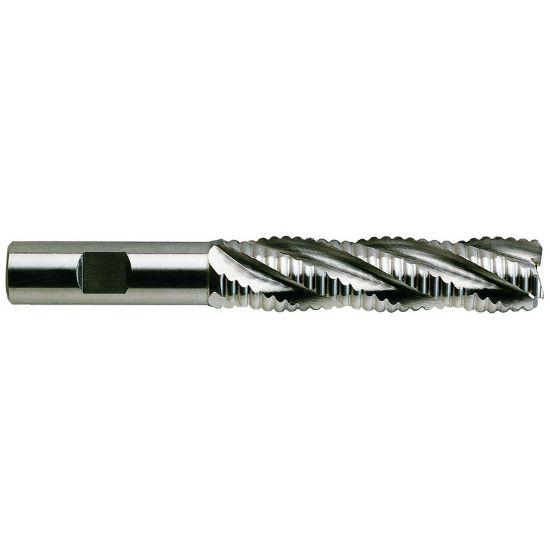

Picture of YG-1 62457 DIA 1-1/2 SH 0.7500 LOC 4.00 OAL 6.2500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 62457 DIA 1-1/2 SH 0.7500 LOC 4.00 OAL 6.2500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-62457
Delivery date: 3-5 days
$139.23

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Inch/Metric Inch
Length Of Cut 4.0000 101.60MM
Cutter Style Cobalt Rougher
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Overall Len 6.2500 158.75MM
Flutes/Inserts 6
Helix Angle 30°
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Long
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
