  • YG-1 62445 DIA 1-1/4 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

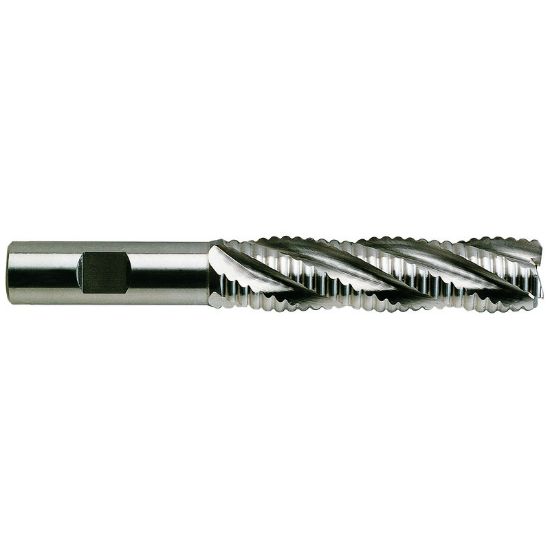

Picture of YG-1 62445 DIA 1-1/4 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 62445 DIA 1-1/4 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-62445
Delivery date: 3-5 days
$117.27

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Weldon
Length Of Cut 4.0000 101.60MM
Helix Angle 30°
Cutter Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 6
Inch/Metric Inch
Cutter Style Cobalt Rougher
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
End Of Tool Shape Square
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
