  • YG-1 62439CN DIA 1-1/4 SH 0.7500 LOC 4.00 OAL 6.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

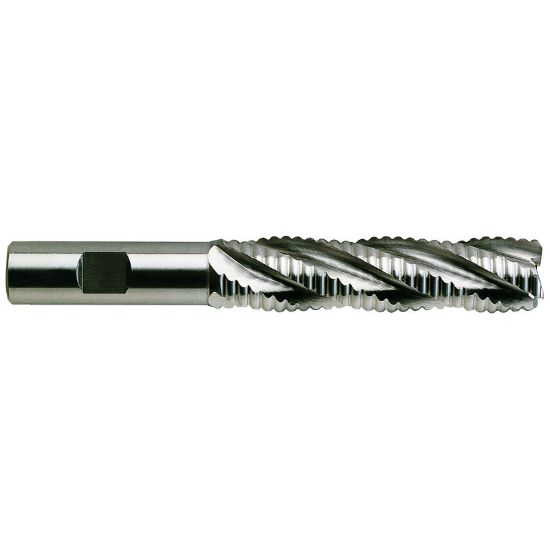

Picture of YG-1 62439CN DIA 1-1/4 SH 0.7500 LOC 4.00 OAL 6.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 62439CN DIA 1-1/4 SH 0.7500 LOC 4.00 OAL 6.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-62439CN
Delivery date: 3-5 days
$152.93

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Coating TiN
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
End Of Tool Shape Square
Cutter Style Cobalt Rougher
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Flutes/Inserts 6
Inch/Metric Inch
Machine Side Connection Size 0.7500 19.05MM
Overall Len 6.2500 158.75MM
Length Of Cut 4.0000 101.60MM
Helix Angle 30°
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
