  • YG-1 62391CN DIA 7/8 SH 0.7500 LOC 3.50 OAL 5.7500 End Mill Cobalt TiN Single End Square Sharp General Purpose

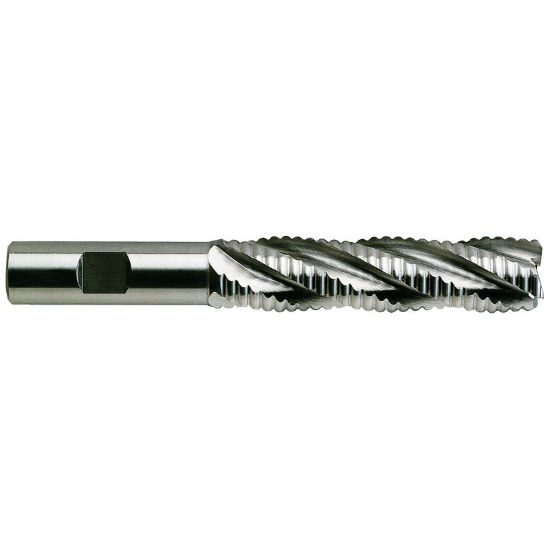

Picture of YG-1 62391CN DIA 7/8 SH 0.7500 LOC 3.50 OAL 5.7500 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 62391CN DIA 7/8 SH 0.7500 LOC 3.50 OAL 5.7500 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-62391CN
Delivery date: 3-5 days
$118.97

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Application Side Milling, Face Milling
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Style Cobalt Rougher
Machine Side Connection Type Weldon
Length Of Cut 3.5000 88.90MM
Inch/Metric Inch
Length Type Long
Helix Angle 30°
Overall Len 5.7500 146.05MM
End Of Tool Shape Square
Cutter Dia 0.8750 22.23MM - 7/8
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
