  • YG-1 62358 DIA 3/4 SH 0.6250 LOC 3.00 OAL 5.1250 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

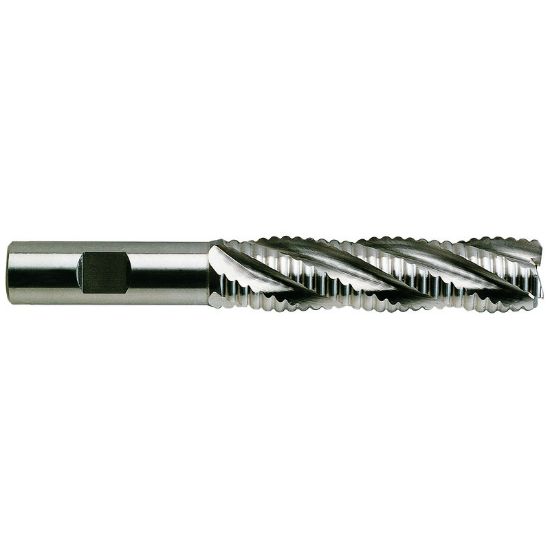

Picture of YG-1 62358 DIA 3/4 SH 0.6250 LOC 3.00 OAL 5.1250 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 62358 DIA 3/4 SH 0.6250 LOC 3.00 OAL 5.1250 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-62358
Delivery date: 3-5 days
$49.16

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 5.1250 130.18MM
Flutes/Inserts 4
Length Of Cut 3.0000 76.20MM
Length Type Long
End Of Tool Shape Square
Inch/Metric Inch
Cutter Dia 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Weldon
Helix Angle 30°
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Cutter Style Cobalt Rougher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
