  • YG-1 60422 DIA 1 SH 0.7500 LOC 2.00 OAL 4.2500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

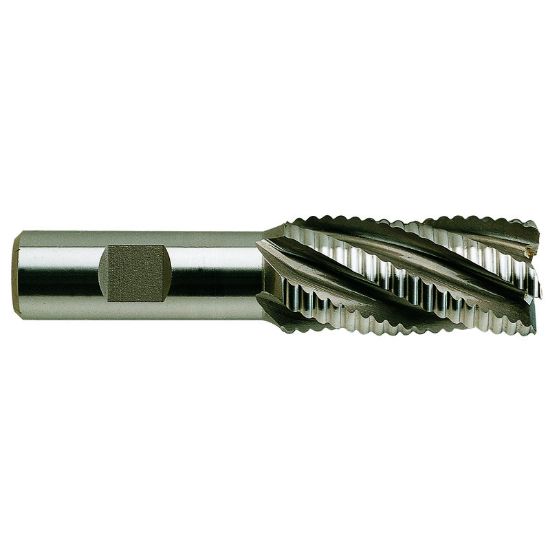

Picture of YG-1 60422 DIA 1 SH 0.7500 LOC 2.00 OAL 4.2500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 60422 DIA 1 SH 0.7500 LOC 2.00 OAL 4.2500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-60422
Delivery date: 3-5 days
$56.88

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 4.2500 107.95MM
End Of Tool Shape Square
Inch/Metric Inch
Cutter Dia 1.0000 25.40MM
Length Type Standard
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Tool Material Cobalt
Cutter Style Cobalt Rougher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
