  • YG-1 60409CN DIA 15/16 SH 0.8750 LOC 1.8750 OAL 4.1250 End Mill Cobalt TiN Single End Square Sharp General Purpose

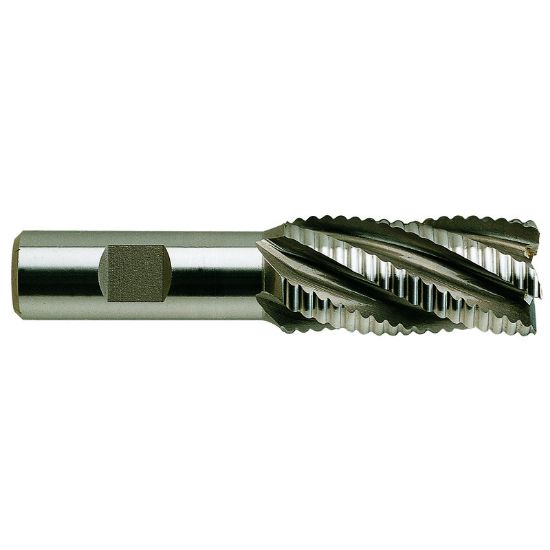

Picture of YG-1 60409CN DIA 15/16 SH 0.8750 LOC 1.8750 OAL 4.1250 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 60409CN DIA 15/16 SH 0.8750 LOC 1.8750 OAL 4.1250 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-60409CN
Delivery date: 3-5 days
$79.76

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling
Coating TiN
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 0.9375 23.81MM - 15/16
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Cutter Style Cobalt Rougher
Flutes/Inserts 5
Machine Side Connection Type Weldon
Helix Angle 30°
Machine Side Connection Size 0.8750 22.23MM
End Of Tool Shape Square
Length Of Cut 1.8750 47.63MM
Length Type Standard
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Overall Len 4.1250 104.78MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
