  • YG-1 60375CN DIA 13/16 SH 0.7500 LOC 1.8750 OAL 4.1250 End Mill Cobalt TiN Single End Square Sharp General Purpose

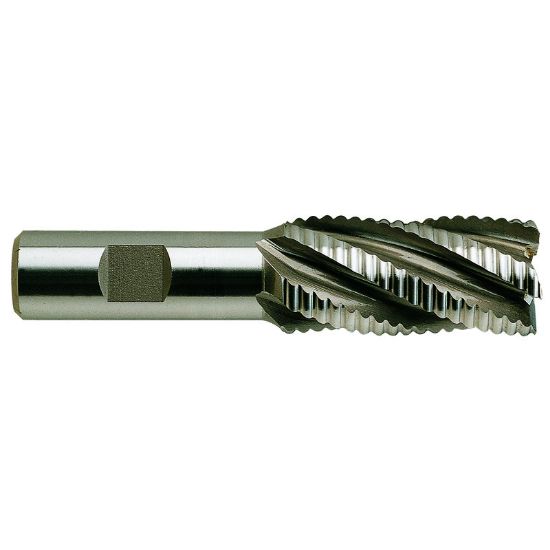

Picture of YG-1 60375CN DIA 13/16 SH 0.7500 LOC 1.8750 OAL 4.1250 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 60375CN DIA 13/16 SH 0.7500 LOC 1.8750 OAL 4.1250 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-60375CN
Delivery date: 3-5 days
$67.12

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Performance Rating General Performance
Application Face Milling, Side Milling
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.8125 20.64MM - 13/16
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Machine Side Connection Type Weldon
Inch/Metric Inch
Overall Len 4.1250 104.78MM
Cutter Style Cobalt Rougher
Flutes/Inserts 4
Length Of Cut 1.8750 47.63MM
Length Type Standard
Helix Angle 30°
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
