  • YG-1 60375 DIA 13/16 SH 0.7500 LOC 1.8750 OAL 4.1250 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

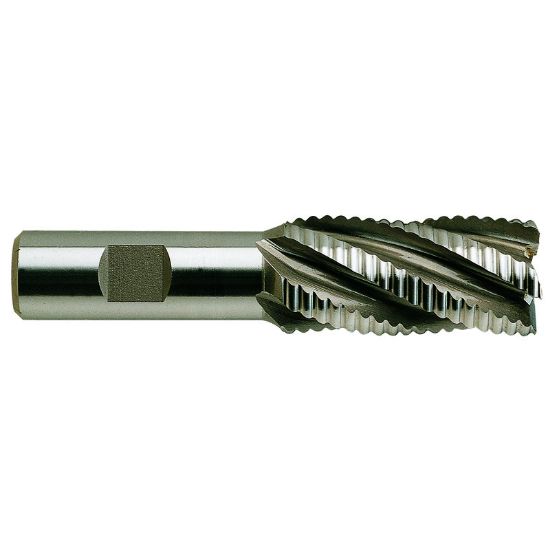

Picture of YG-1 60375 DIA 13/16 SH 0.7500 LOC 1.8750 OAL 4.1250 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 60375 DIA 13/16 SH 0.7500 LOC 1.8750 OAL 4.1250 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-60375
Delivery date: 3-5 days
$50.57

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Side Milling, Face Milling
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Flutes/Inserts 4
Length Of Cut 1.8750 47.63MM
Length Type Standard
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.8125 20.64MM - 13/16
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Overall Len 4.1250 104.78MM
Cutter Style Cobalt Rougher
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
