  • YG-1 60359CN DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.7500 End Mill Cobalt TiN Single End Square Sharp General Purpose

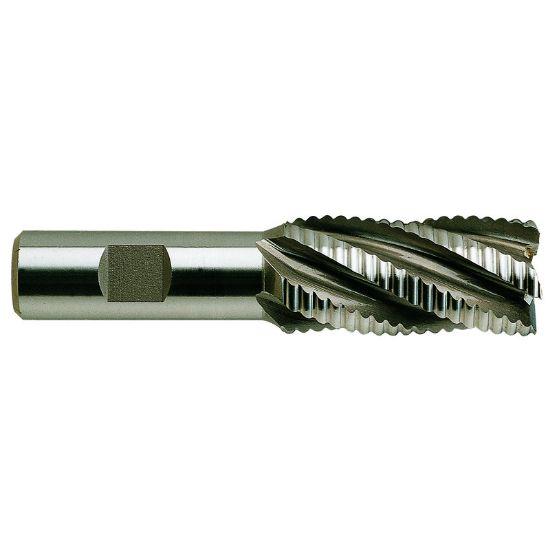

Picture of YG-1 60359CN DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.7500 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 60359CN DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.7500 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-60359CN
Delivery date: 3-5 days
$52.84

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Coating TiN
Shipping State Illinois
Package Size 1
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Cobalt
Cutter Style Cobalt Rougher
Single/Double End Single End
Machine Side Connection Size 0.7500 19.05MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6250 41.28MM
Helix Angle 30°
Flutes/Inserts 4
Length Type Standard
End Of Tool Shape Square
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
