  • YG-1 60337 DIA 5/8 SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

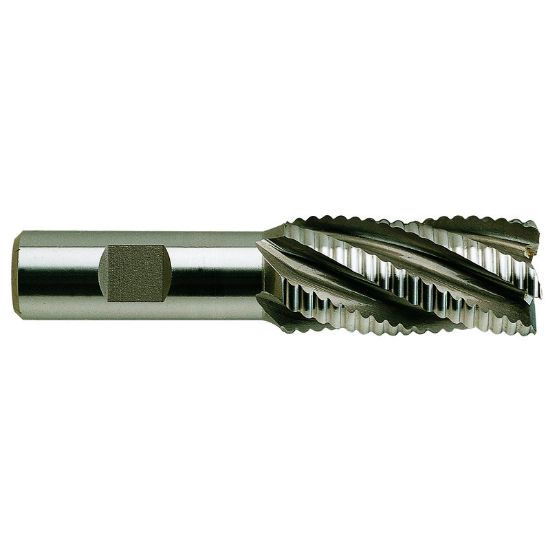

Picture of YG-1 60337 DIA 5/8 SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 60337 DIA 5/8 SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-60337
Delivery date: 3-5 days
$31.63

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
End Of Tool Shape Square
Cutter Style Cobalt Rougher
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Inch/Metric Inch
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.6250 15.88MM - 5/8
Helix Angle 30°
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
