  • YG-1 60297CN DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375 End Mill Cobalt TiN Single End Square Sharp General Purpose

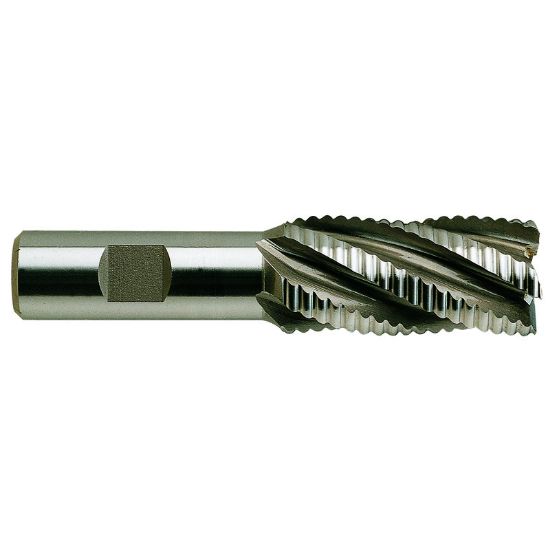

Picture of YG-1 60297CN DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 60297CN DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-60297CN
Delivery date: 3-5 days
$25.07

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Application Side Milling, Face Milling
Dimensional Specifications
Cutter Style Cobalt Rougher
Length Of Cut 0.6250 15.88MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Flutes/Inserts 3
End Of Tool Shape Square
Machine Side Connection Type Weldon
Helix Angle 30°
Cutter Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.4375 61.91MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
