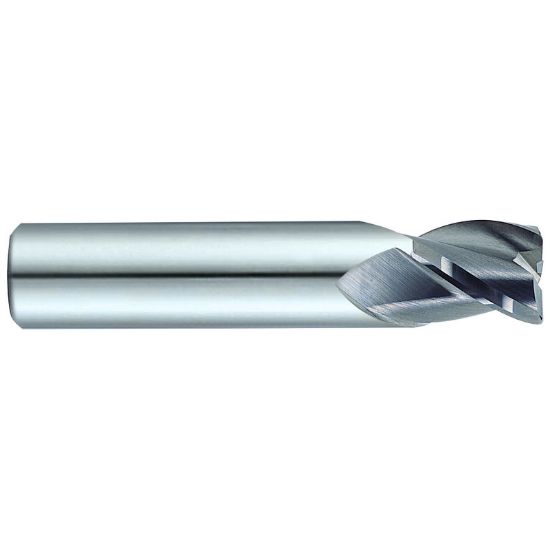

YG-1 57600 DIA 1 SH 1.00 LOC 1.2500 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM - 0.0350 0.89MM Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-57600
Delivery date: 3-5 days
$243.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Helix Angle 35°
Single/Double End Single End
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Length Type Stub
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Corner Radius 0.0300 0.76MM - 0.0350 0.89MM
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
