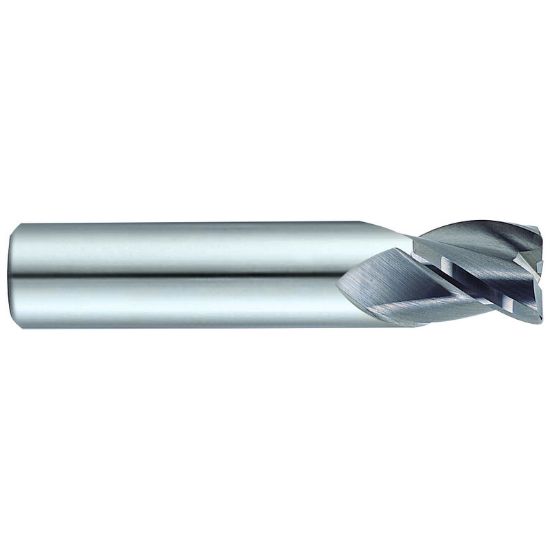

YG-1 57595TH DIA 5/8 SH 0.6250 LOC 0.7500 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Hardslick Single End Corner Radius 0.0300 0.76MM - 0.0350 0.89MM Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-57595TH
Delivery date: 3-5 days
$121.69

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Coating Hardslick
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.6250 15.88MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 3.0000 76.20MM
Length Type Stub
Length Of Cut 0.7500 19.05MM
Helix Angle 35°
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Corner Radius 0.0300 0.76MM - 0.0350 0.89MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
