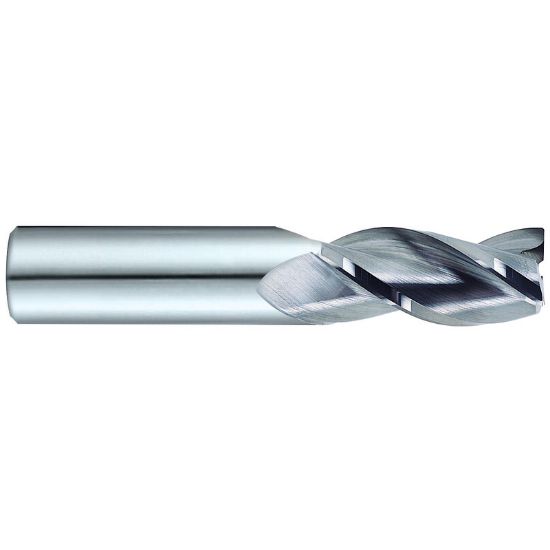

Picture of YG-1 57593TH Dia 1/2 SH 0.50 LOC 0.6250 OAL2.50 End Mill Standard Flute Standard Helix Carbide Hardslick Single End Corner Radius0.0300 0.76mm - 0.0350 0.89mm Carbide EndMillS

YG-1 57593TH Dia 1/2 SH 0.50 LOC 0.6250 OAL2.50 End Mill Standard Flute Standard Helix Carbide Hardslick Single End Corner Radius0.0300 0.76mm - 0.0350 0.89mm Carbide EndMillS

Part Number: YG-57593TH
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1210393
Vendor: Sussex Tool and Supply
$119.47

Description

YG-1 Standard Helix End Mill Carbide Hardslick Corner Radius 0.0300 0.76MM - 0.0350 0.89MM Standard Flute Flutes 3 Single End CARBIDE ENDMILLS Carbide Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.6250 15.88MM
Geometry & Angles
Corner Radius 0.0300 0.76MM - 0.0350 0.89MM
Helix Angle 35
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating Hardslick
