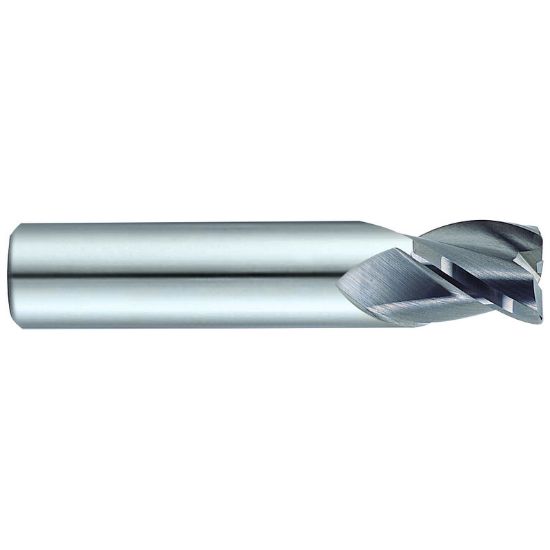

YG-1 57558TH DIA 1/8 SH 0.1250 LOC 0.2500 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Hardslick Single End Corner Radius 0.0080 0.20MM - 0.0121 0.31MM Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-57558TH
Delivery date: 3-5 days
$18.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Coating Hardslick
Performance Rating General Performance
Shipping State Illinois
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Cutter Dia 0.1250 3.18MM - 1/8
Length Type Stub
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Length Of Cut 0.2500 6.35MM
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.1250 3.18MM
End Of Tool Shape Corner Radius
Helix Angle 35°
Single/Double End Single End
Corner Radius 0.0080 0.20MM - 0.0121 0.31MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
