  • YG-1 57272 DIA 3/16 SH 0.1875 LOC 1.00 OAL 3.3750 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

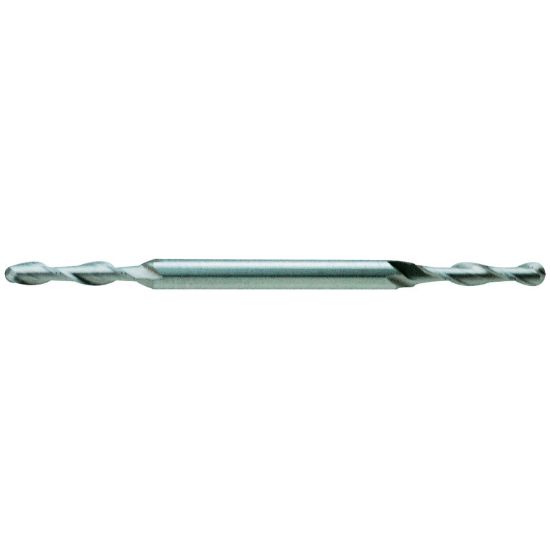

Picture of YG-1 57272 DIA 3/16 SH 0.1875 LOC 1.00 OAL 3.3750 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 57272 DIA 3/16 SH 0.1875 LOC 1.00 OAL 3.3750 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-57272
Delivery date: 3-5 days
$21.03

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Milling, Side Milling, Copy Milling, Ball Slot Milling, Profile Milling
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Cutter Style Cobalt Miniature Ball
Machine Side Connection Size 0.1875 4.76MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Neck Length 1.0000 25.40MM
End Of Tool Shape Ball Nose
Length Type Long / With Neck
Machine Side Connection Type Weldon
Overall Len 3.3750 85.73MM
Length Of Cut 1.0000 25.40MM
Helix Angle 30°
Single/Double End Double End
Cutter Dia 0.1875 4.76MM - 3/16
Inch/Metric Inch
Tool Material Cobalt
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
