  • YG-1 57268 DIA 5/32 SH 0.1875 LOC 0.8750 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

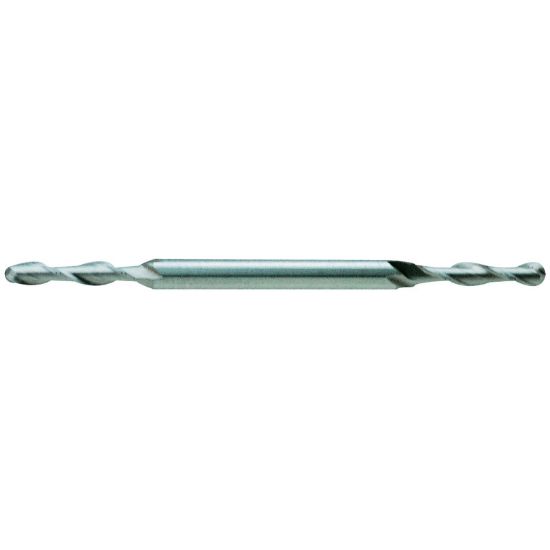

Picture of YG-1 57268 DIA 5/32 SH 0.1875 LOC 0.8750 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 57268 DIA 5/32 SH 0.1875 LOC 0.8750 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-57268
Delivery date: 3-5 days
$21.03

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ball Slot Milling, Ball Milling, Profile Milling, Copy Milling
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Length Type Long / With Neck
Neck Length 0.8750 22.23MM
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Cutter Dia 0.1563 3.97MM - 5/32
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Length Of Cut 0.8750 22.23MM
Cutter Style Cobalt Miniature Ball
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Ball Nose
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Overall Len 3.2500 82.55MM
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
