  • YG-1 57264CN DIA 1/8 SH 0.1875 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

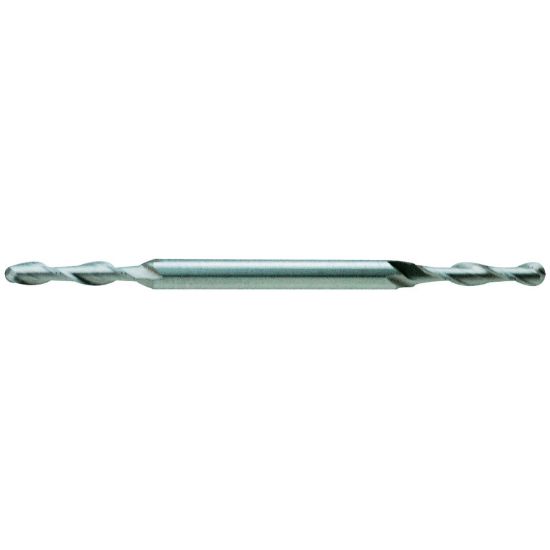

Picture of YG-1 57264CN DIA 1/8 SH 0.1875 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 57264CN DIA 1/8 SH 0.1875 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-57264CN
Delivery date: 3-5 days
$28.28

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Ball Slot Milling, Ball Milling, Copy Milling
Performance Rating General Performance
Package Size 1
Coating TiN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.1250 3.18MM - 1/8
Neck Length 0.7500 19.05MM
Machine Side Connection Type Weldon
Helix Angle 30°
Length Type Long / With Neck
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Length Of Cut 0.7500 19.05MM
Machine Side Connection Size 0.1875 4.76MM
End Of Tool Shape Ball Nose
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutter Style Cobalt Miniature Ball
Overall Len 3.1250 79.38MM
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
