  • YG-1 57256CN DIA 1/16 SH 0.1875 LOC 0.2187 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

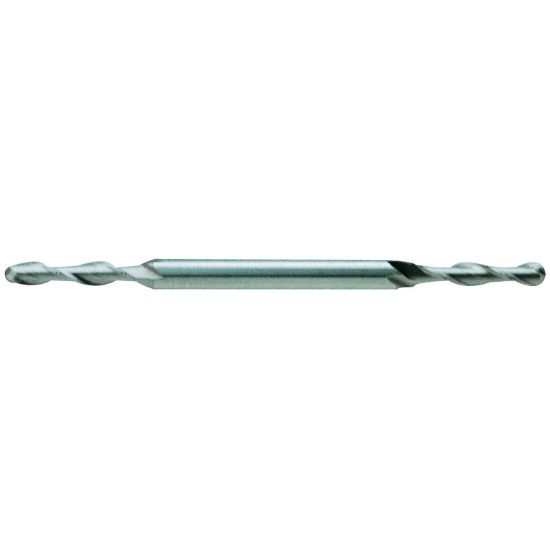

Picture of YG-1 57256CN DIA 1/16 SH 0.1875 LOC 0.2187 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 57256CN DIA 1/16 SH 0.1875 LOC 0.2187 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-57256CN
Delivery date: 3-5 days
$29.04

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling
Shipping State Illinois
Coating TiN
Made In USA No
Package Size 1
Dimensional Specifications
Length Of Cut 0.2188 5.56MM
Helix Angle 30°
Machine Side Connection Size 0.1875 4.76MM
Neck Length 0.3750 9.53MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Tool Material Cobalt
Overall Len 2.5000 63.50MM
Cutter Dia 0.0625 1.59MM - 1/16
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style Cobalt Miniature Ball
End Of Tool Shape Ball Nose
Length Type Long / With Neck
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Medical Yes
