  • YG-1 57256 DIA 1/16 SH 0.1875 LOC 0.2187 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

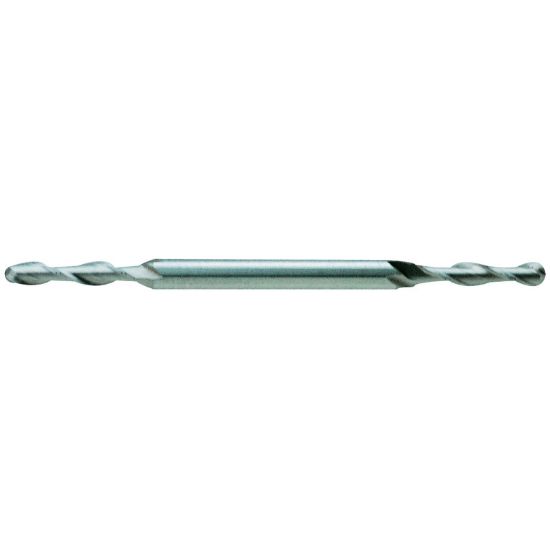

Picture of YG-1 57256 DIA 1/16 SH 0.1875 LOC 0.2187 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 57256 DIA 1/16 SH 0.1875 LOC 0.2187 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-57256
Delivery date: 3-5 days
$22.51

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Profile Milling, Side Milling, Ball Milling
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Neck Length 0.3750 9.53MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Overall Len 2.5000 63.50MM
End Of Tool Shape Ball Nose
Length Type Long / With Neck
Length Of Cut 0.2188 5.56MM
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Cutter Style Cobalt Miniature Ball
Machine Side Connection Size 0.1875 4.76MM
Cutter Dia 0.0625 1.59MM - 1/16
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Medical Yes
Job Shop Yes
Mold Yes
