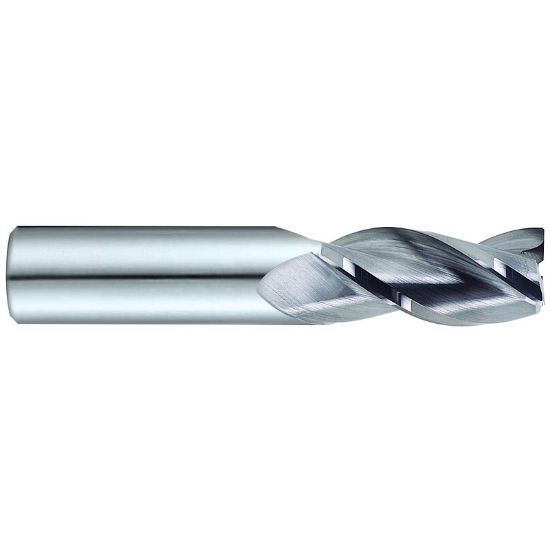

Picture of YG-1 56598TH Dia 3/4 SH 0.7500 LOC 1.6250 OAL4.00 End Mill Standard Flute Standard Helix Carbide Hardslick Single End Corner Radius0.0300 0.76mm - 0.0350 0.89mm Carbide EndMillS

YG-1 56598TH Dia 3/4 SH 0.7500 LOC 1.6250 OAL4.00 End Mill Standard Flute Standard Helix Carbide Hardslick Single End Corner Radius0.0300 0.76mm - 0.0350 0.89mm Carbide EndMillS

Part Number: YG-56598TH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1210380
Vendor: Sussex Tool and Supply
$201.08
YG-1 Standard Helix End Mill Carbide Hardslick Corner Radius 0.0300 0.76MM - 0.0350 0.89MM Standard Flute Flutes 3 Single End CARBIDE ENDMILLS Carbide Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Coating Hardslick
Mach Side Connection Size 0.7500 19.05MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.6250 41.28MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM - 0.0350 0.89MM
Inch/Metric Inch
Helix Angle 35
Center Cutting Center Cutting
