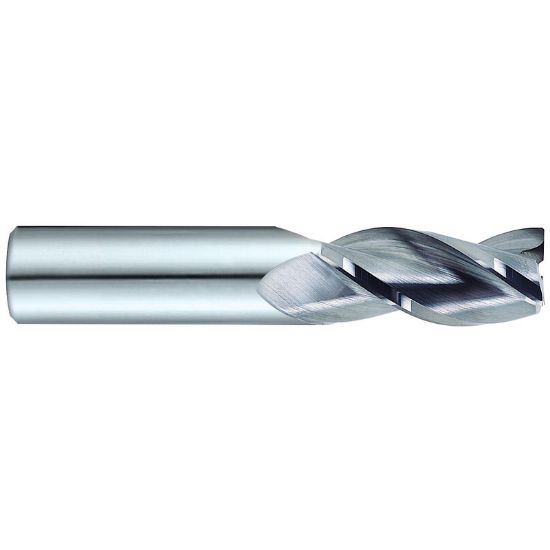

YG-1 56598 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM - 0.0350 0.89MM Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56598
Delivery date: 3-5 days
$161.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Copy Milling, Profile Milling, Slot Milling
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6250 41.28MM
Helix Angle 35°
Single/Double End Single End
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Overall Len 4.0000 101.60MM
Length Type Standard
Corner Radius 0.0300 0.76MM - 0.0350 0.89MM
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Style Carbide Bull Nose Finisher
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
