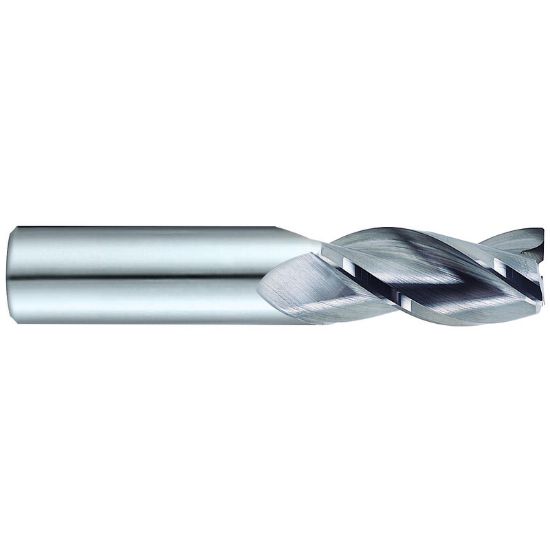

YG-1 56594 DIA 9/16 SH 0.5625 LOC 1.2500 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM - 0.0350 0.89MM Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56594
Delivery date: 3-5 days
$94.41

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Side Milling, Slot Milling, Copy Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Helix Angle 35°
Single/Double End Single End
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Length Type Standard
Machine Side Connection Size 0.5625 14.29MM
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.0300 0.76MM - 0.0350 0.89MM
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.5625 14.29MM - 9/16
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
