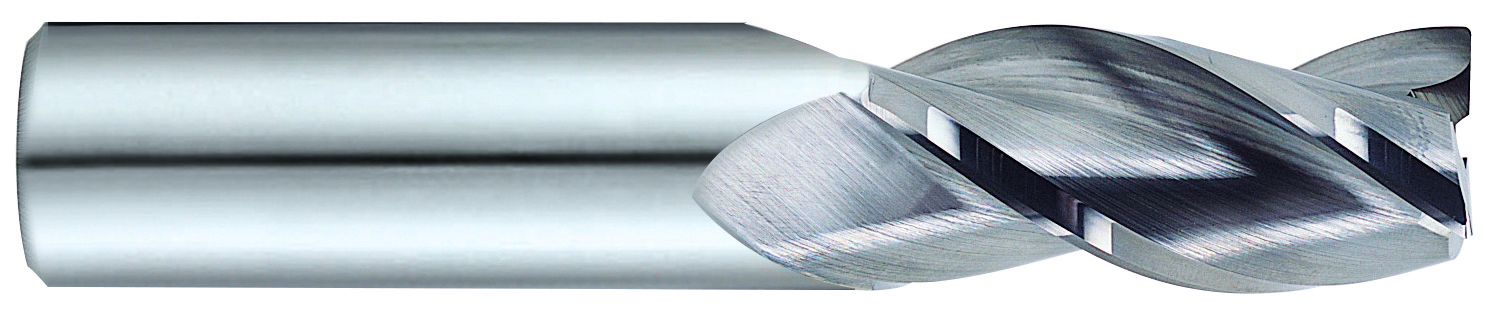

Picture of YG-1 56593TC Dia 1/2 SH 0.50 LOC 1.2500 OAL3.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0300 0.76mm - 0.0350 0.89mm Carbide EndMillS

YG-1 56593TC Dia 1/2 SH 0.50 LOC 1.2500 OAL3.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0300 0.76mm - 0.0350 0.89mm Carbide EndMillS

Part Number: YG-56593TC
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1210364
Vendor: Sussex Tool and Supply
$122.39

Description

YG-1 Standard Helix End Mill Carbide TiCN Corner Radius 0.0300 0.76MM - 0.0350 0.89MM Standard Flute Flutes 3 Single End CARBIDE ENDMILLS Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 1.2500 31.75MM
Geometry & Angles
Corner Radius 0.0300 0.76MM - 0.0350 0.89MM
Helix Angle 35
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
