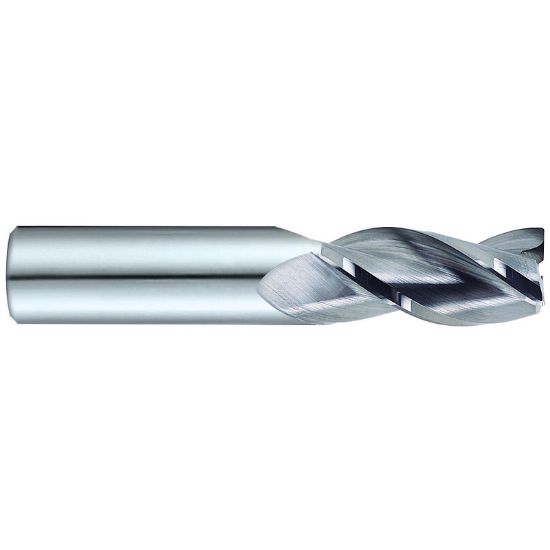

YG-1 56579TH DIA 5/16 SH 0.3125 LOC 0.8125 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Hardslick Single End Corner Radius 0.0150 0.38MM - 0.0200 0.51MM Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-56579TH
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Side Milling, Copy Milling, Slot Milling
Made In USA No
Shipping State Illinois
Package Size 1
Coating Hardslick
Performance Rating General Performance
Dimensional Specifications
Overall Len 2.5000 63.50MM
Helix Angle 35°
Single/Double End Single End
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Corner Radius 0.0150 0.38MM - 0.0200 0.51MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 3
Length Of Cut 0.8125 20.64MM
Cutter Style Carbide Bull Nose Finisher
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
